Kora Founders Edition Install 2.4 | Connecting Existing Solar

If the home already has solar, its inverter output lands in the Smart Panel's built-in PV breaker position.

Oct 9, 2026 1 min read by Kora Power

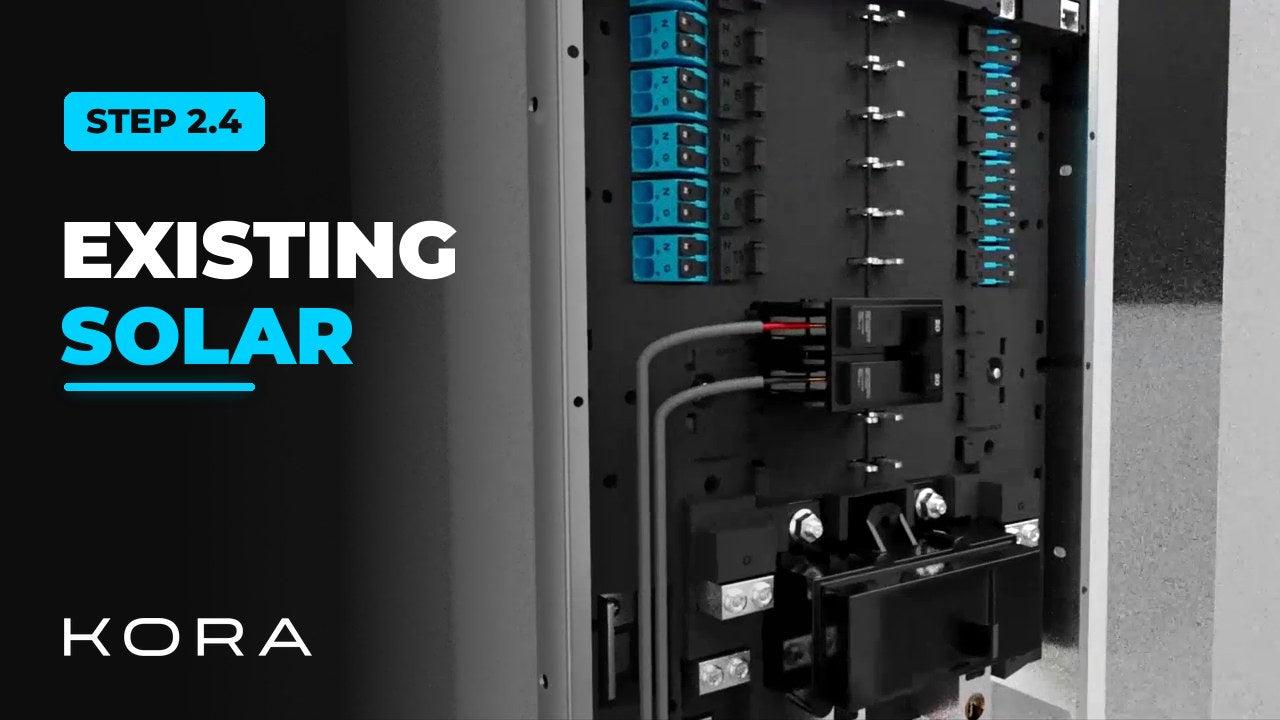

Kora Founders Edition Install 2.4 | Connecting Existing Solar

If the home already has solar, here's where it lands on the Smart Panel. The existing solar inverter's AC output goes to the panel's built-in solar (PV) breaker position.

Follow the manual's AC-coupled PV section for the inverter rating limits and connection details.

Key steps

Run the existing solar conduit to the Smart Panel
Land it in the built-in solar (PV) breaker position

Part of the Kora Smart Panel installation series for licensed electricians installing the Kora Founders Edition. Previous: 2.3 Grid Connection: Ground, Neutral and Hots. Next: 2.5 Landing the Branch Breakers.

Watch on YouTube Subscribe to Kora on YouTube

From the manual

The matching pages from the Kora Smart Panel & Powerblocks Installation Manual. Always follow the manual and local code.

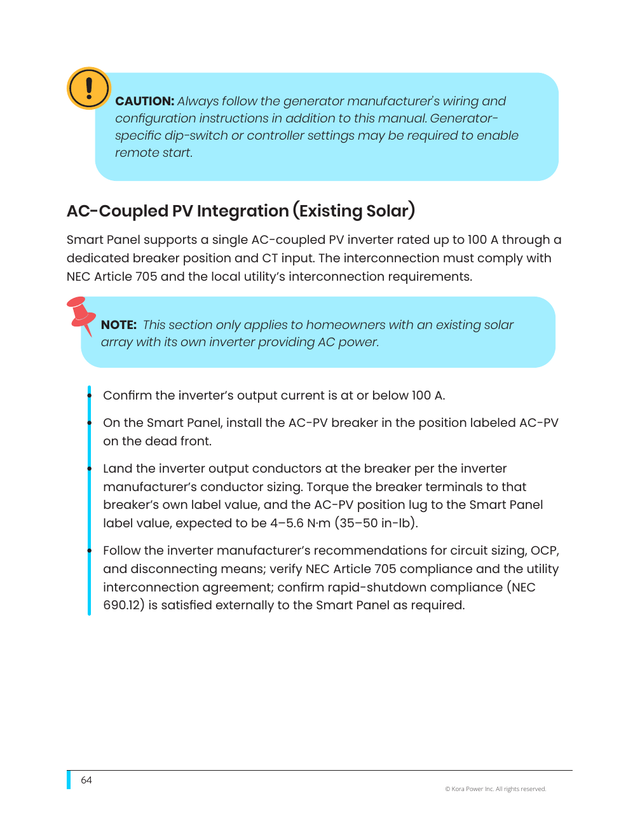

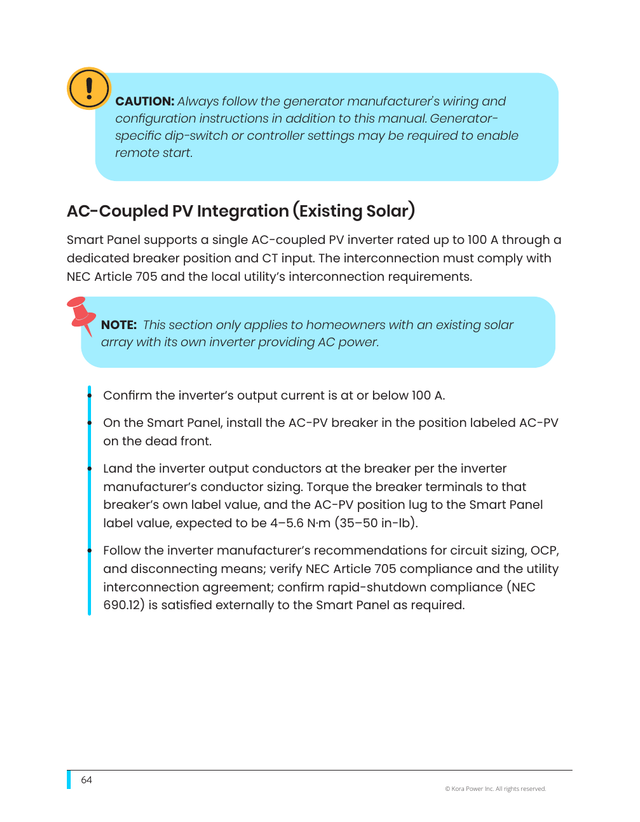

Manual p. 64 – 9.7 AC-Coupled PV

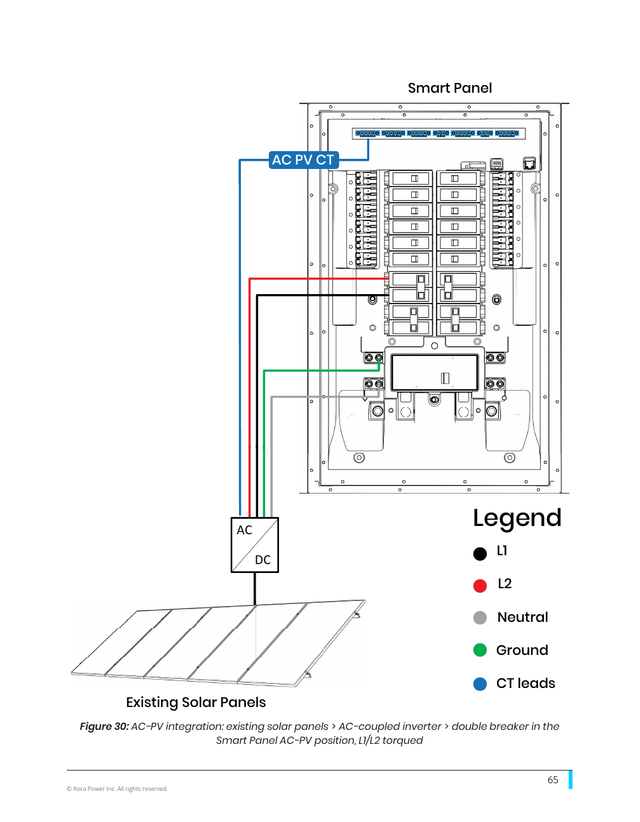

Manual p. 65 – 9.7 Existing Solar Wiring (Fig. 30)
